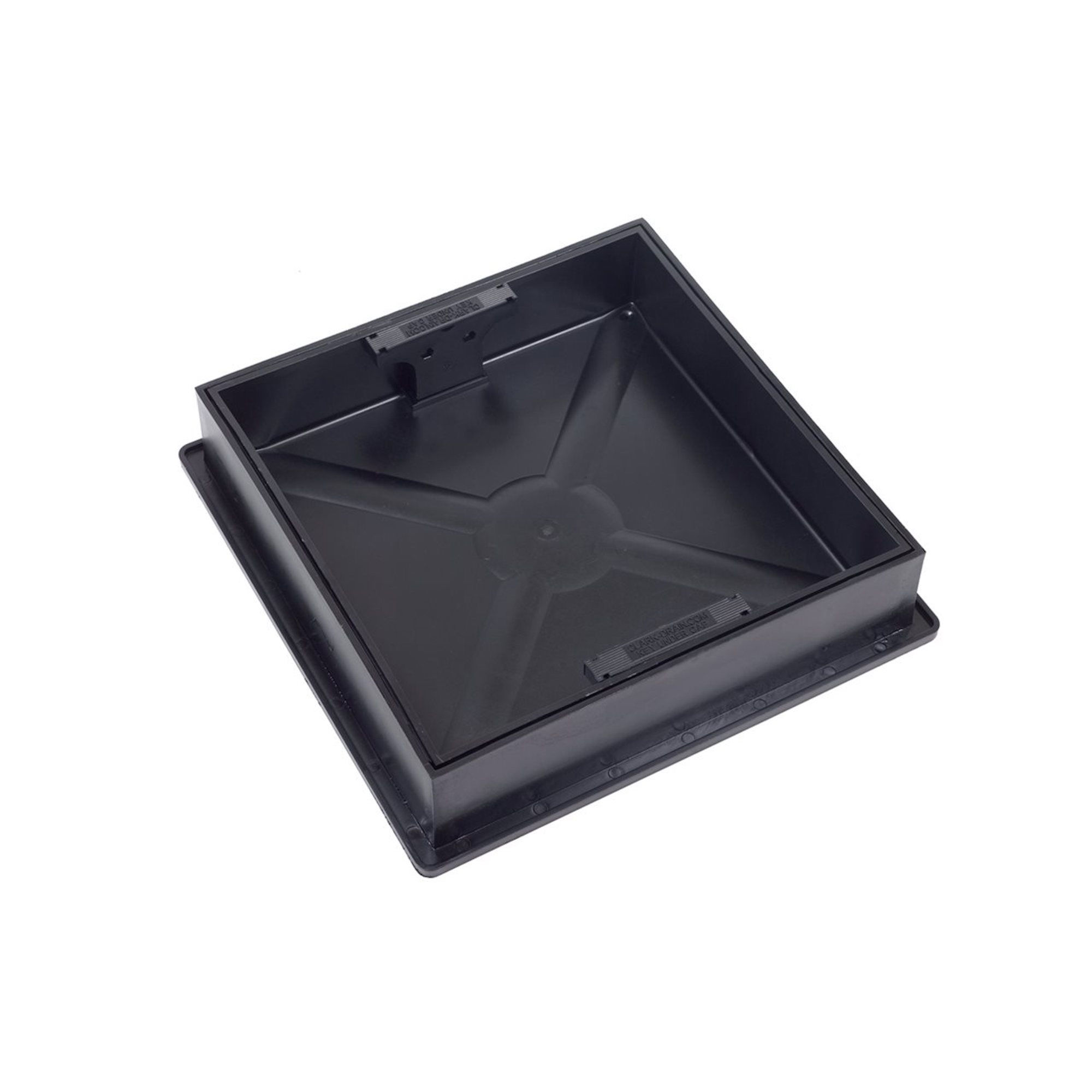

Clark-Drain GPW Recessed Square to Round Block Paving Manhole Cover and Frame 3.5 Tonne - CD 300SR
In stock
REF
BMAN407
- Loading: 3.5 tonne
- Internal dimensions: 80mm (D)
- External dimensions: 438mm x 438mm x 93mm (L x W x D)
- Clear opening: 220 - 300 diameter
- Applications: landscaping, driveway
- Recessed (block paving)
- Integral lifting keys included
- Square-to-round design, suitable for use with CD U353 and CD U355 chamber risers
- Unique stepped spigot/reducer also allows fitment to other 220-300 dia chamber risers
- Corrosion resistant
- Material: polypropylene cover and frame
- Made from recycled material
- Simple to install
- Suitable for paved areas
- Eliminates the need to cut paving around a circular opening
£35.99
£29.99
Stock levels are a guide only, please call ahead to confirm availability
- Loading: 3.5 tonne
- Internal dimensions: 80mm (D)
- External dimensions: 438mm x 438mm x 93mm (L x W x D)
- Clear opening: 220 - 300 diameter
- Applications: landscaping, driveway
- Recessed (block paving)
- Integral lifting keys included
- Square-to-round design, suitable for use with CD U353 and CD U355 chamber risers
- Unique stepped spigot/reducer also allows fitment to other 220-300 dia chamber risers
- Corrosion resistant
- Material: polypropylene cover and frame
- Made from recycled material
- Simple to install
- Suitable for paved areas
- Eliminates the need to cut paving around a circular opening
Recessed square to round block paving manhole cover complete with frame. Suitable for block and slab paving as well as concrete screeding installations. For a seamless driveway installation cover the top with block paving slabs, up to 60mm thick.
Technical:
- Weight (kgs): 6kg
- Load rating classification: 35kN (domestic driveway)
- Load test data: 35kN held for 30 seconds
