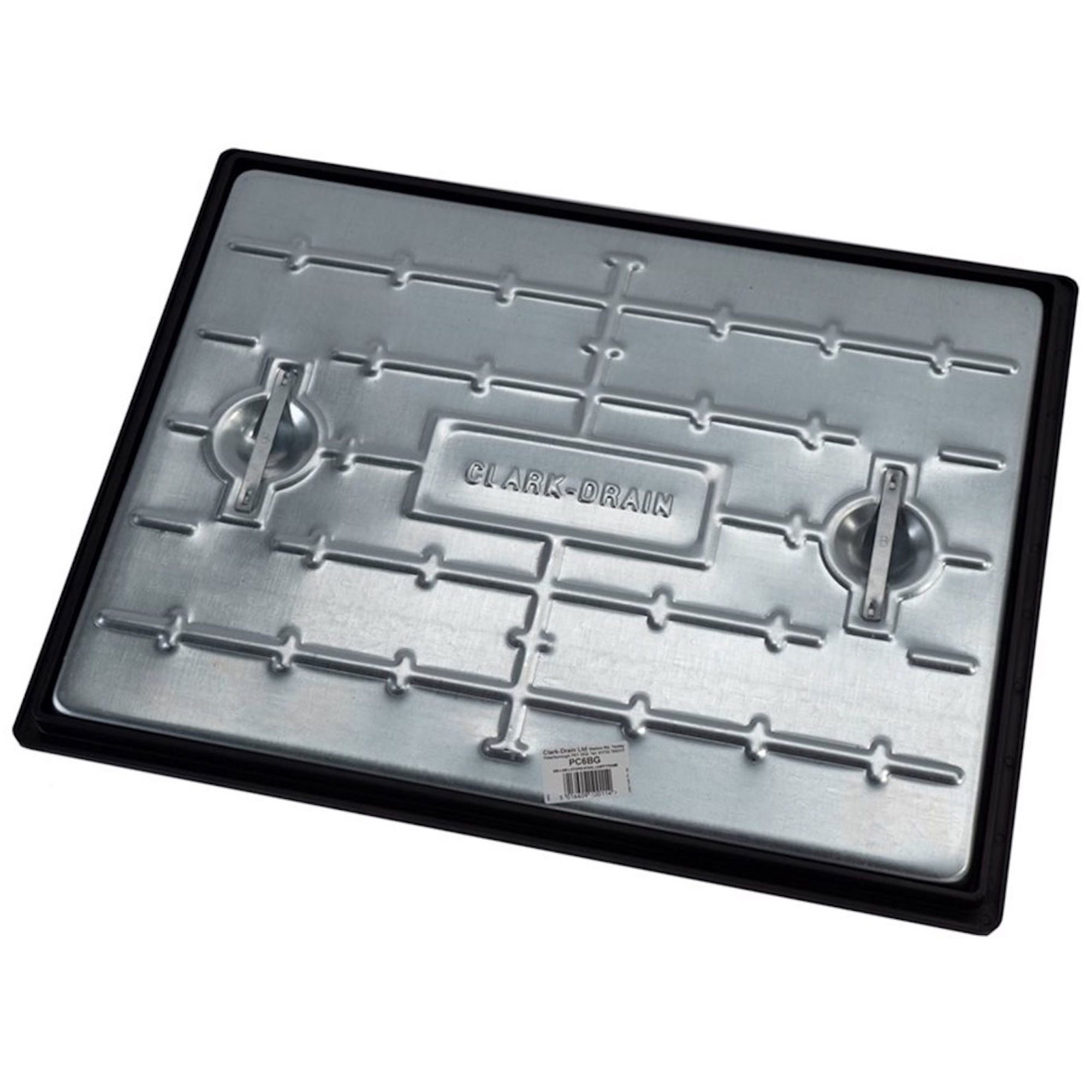

Clark-Drain GPW Galvanised Steel Manhole Cover and Frame 5 Tonne 600mm x 450mm - PC6BG

In stock
REF
BMAN005
  • Loading: 5 tonne gross plated weight
  • Internal dimensions: 600mm x 450mm (L x W)
  • External dimensions: 663mm x 513mm x 30mm (L x W x D)
  • Clear opening: 600mm x 450mm (L x W)
  • Solid top
  • Galvanised pressed steel cover
  • Polypropylene frame
  • Application: driveway
£33.48 £27.90
Share on Social Media
  • Loading: 5 tonne gross plated weight
  • Internal dimensions: 600mm x 450mm (L x W)
  • External dimensions: 663mm x 513mm x 30mm (L x W x D)
  • Clear opening: 600mm x 450mm (L x W)
  • Solid top
  • Galvanised pressed steel cover
  • Polypropylene frame
  • Application: driveway

Galvanised steel manhole cover with polypropylene frame suitable for use with light-medium load.

Technical:

  • Load rating classification: 5 tonne GPW
  • Load test data: 12.5kN held for 30 seconds
  • Standards: Mild Steel to BS EN 1449:1991/EN 10025:2004
  • Galvanising to BS EN 1461:2009
  • Polypropylene Grade AP9 (frame only)
