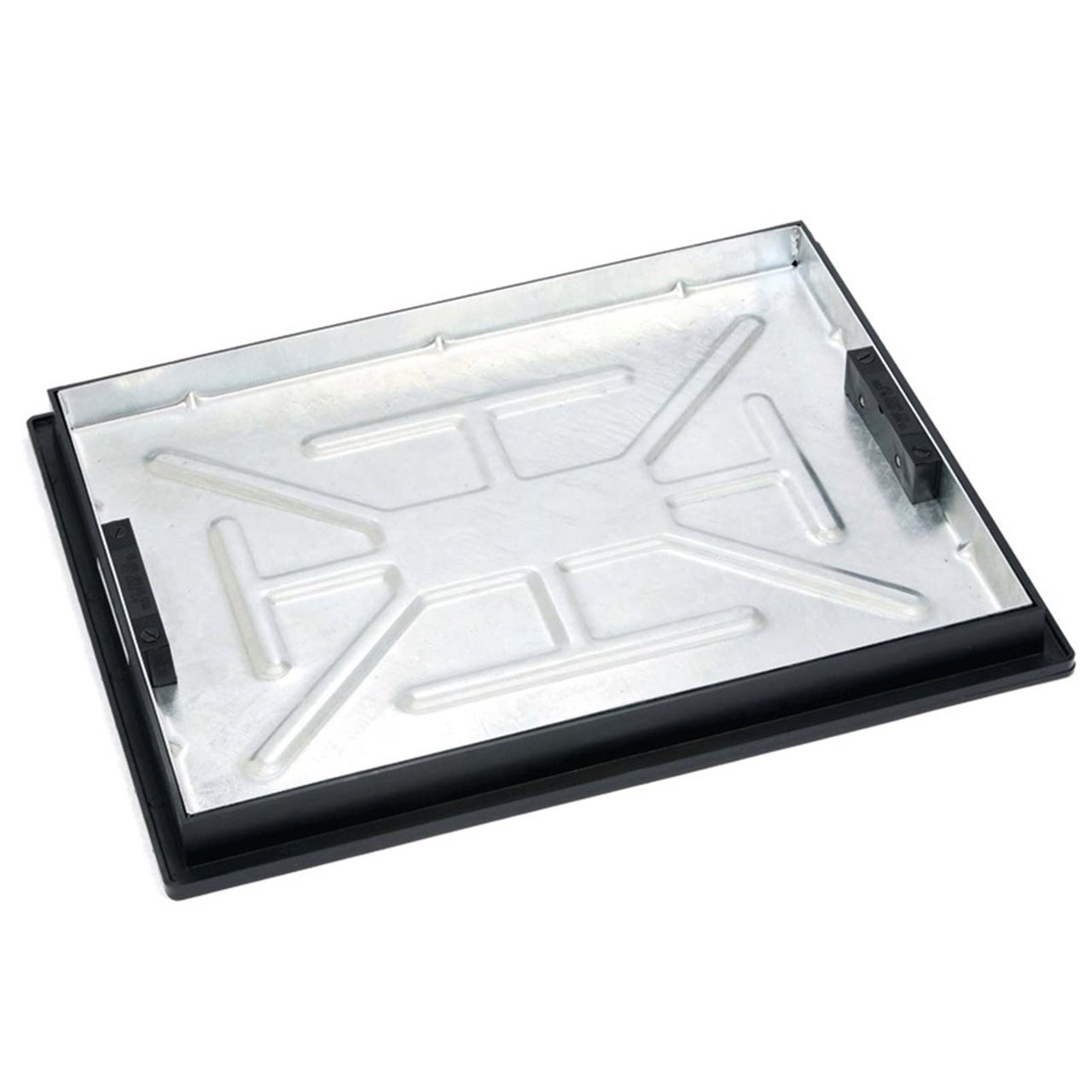

Clark-Drain Galvanised Recessed Manhole Cover and Frame 5 Tonne 600mm x 450mm x 40mm - T11G3

In stock
REF
BMAN110
  • Loading: 5 tonne gross plated weight
  • Internal dimensions: 600mm x 450mm x 43.5mm (L x W x D)
  • External dimensions: 740mm x 590mm x 58mm (L x W x D)
  • Clear opening: 600mm x 450mm
  • Polypropylene frame manufactured from recycled material
  • Moulded grouting flange
  • Interchangeable cover
  • Rubber sealing gasket - prevents odours
  • Lifting keys included
  • Application: internal drainage
  • Locking screws and sealing gasket
  • Cover: recessed (concrete infill)
  • Galvanised steel cover
  • Polypropylene frame
£57.34 £47.78
Share on Social Media
  • Loading: 5 tonne gross plated weight
  • Internal dimensions: 600mm x 450mm x 43.5mm (L x W x D)
  • External dimensions: 740mm x 590mm x 58mm (L x W x D)
  • Clear opening: 600mm x 450mm
  • Polypropylene frame manufactured from recycled material
  • Moulded grouting flange
  • Interchangeable cover
  • Rubber sealing gasket - prevents odours
  • Lifting keys included
  • Application: internal drainage
  • Locking screws and sealing gasket
  • Cover: recessed (concrete infill)
  • Galvanised steel cover
  • Polypropylene frame

Galvanised sealed and locking recessed manhole cover and frame. Features a rubber gasket seal and 4 screws for secure locking. Supplied with integral lifting keys. Suitable for application in pedestrian areas. The manhole is recessed for concrete/screed infill.

Technical:

  • Load rating classification: 5 tonne GPW
  • Load test data: 12.5kN held for 30 seconds
  • Standards: Mild Steel to BS EN 1449:1991/EN 10025:2004
  • Galvanising to BS EN 1461:2009
  • Polypropylene Grade AP9
