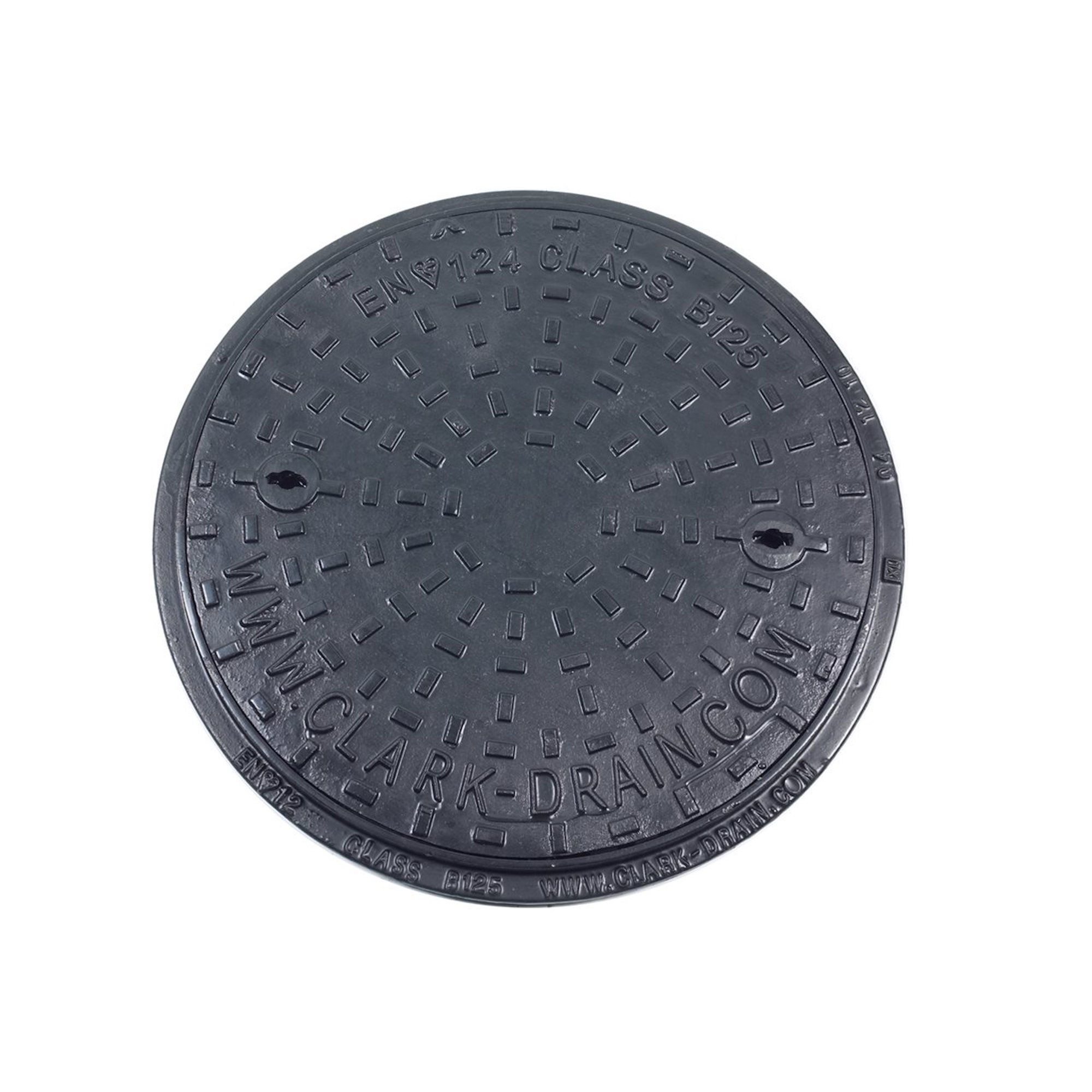

Clark-Drain Solid Top Manhole Cover and Frame - CD 1657 KMB

In stock
REF
BMAN140
  • Loading: B125
  • External dimensions: 550mm x 30mm (W x D)
  • Clear opening: 450
  • Applications: shopping precincts, driveway, pavement
  • Solid top cover
  • Material: ductile iron
  • Integral lifting key holes
  • Lifting keys not included
  • Fits the majority of 450mm dia chambers
£48.85 £40.71
Share on Social Media
  • Loading: B125
  • External dimensions: 550mm x 30mm (W x D)
  • Clear opening: 450
  • Applications: shopping precincts, driveway, pavement
  • Solid top cover
  • Material: ductile iron
  • Integral lifting key holes
  • Lifting keys not included
  • Fits the majority of 450mm dia chambers

Ductile iron solid top and frame manhole with Bitumen-based coating.

Technical:

  • Weight: 16.5kg
  • Load rating classification: B125 - 12.5 tonnes
  • Standard: BS EN124-2:2015
  • Spheroid Graphite Iron Grade EN-GJS-500-7
  • to BS EN 1563:2011
  • Temporary Bitumen-based paint coating to BS 3416:1991
