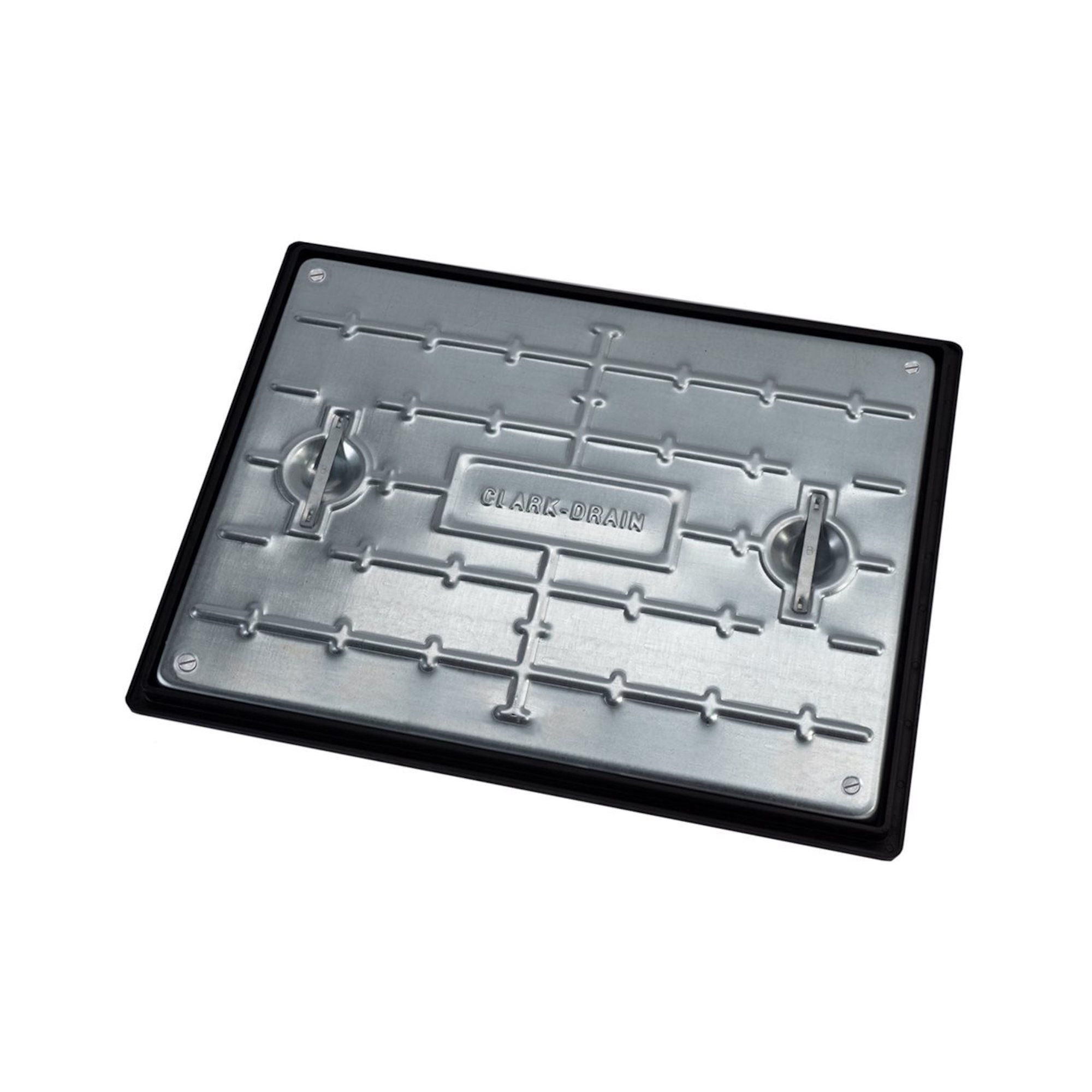

Clark-Drain GPW Galvanised Sealed and Locking Manhole Cover and Frame 5 Tonne 600mm x 450mm - PC6BG3

In stock
REF
BMAN105
  • Loading: 5 tonne gross plated weight
  • Internal dimensions: 600mm x 450mm (L x W)
  • External dimensions: 663mm x 513mm x 30mm (L x W x D)
  • Clear opening: 600mm x 450mm
  • Application: driveway
  • Locking screws and sealing gasket
  • Solid top cover
  • Material: galvanised steel cover
  • Polypropylene frame
£50.95 £42.46
Share on Social Media
  • Loading: 5 tonne gross plated weight
  • Internal dimensions: 600mm x 450mm (L x W)
  • External dimensions: 663mm x 513mm x 30mm (L x W x D)
  • Clear opening: 600mm x 450mm
  • Application: driveway
  • Locking screws and sealing gasket
  • Solid top cover
  • Material: galvanised steel cover
  • Polypropylene frame

Galvanised sealed and locking manhole cover and frame with two staple handles making it simple to lift. For use in external applications and outbuildings only, to reduce odour egress.

Technical:

  • Weight: 6.5kg
  • Load rating classification: 5 tonne GPW
  • Load test data: 12.5kN held for 30 seconds
  • Standard: Mild Steel to BS EN 1449:1991/EN 10025:2004
  • Galvanising to BS EN 1461:2009
  • Polypropylene Grade AP9 (frame only)
  • EPDM (seal only)
