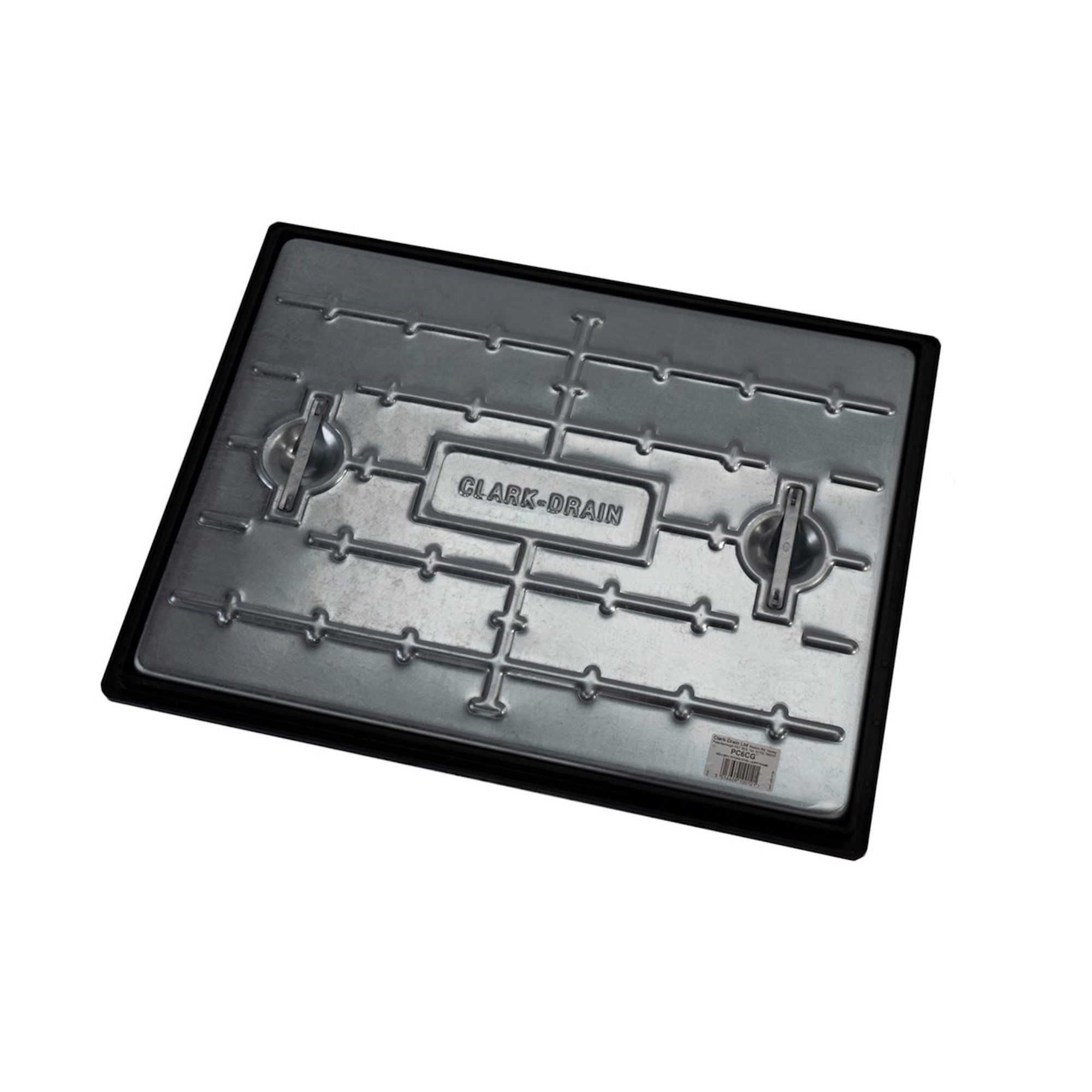

Clark-Drain GPW Galvanised Single Seal Manhole Cover and Frame 10 Tonne 600mm x 450mm - PC6CG

In stock
REF
BMAN010
  • Loading: 10 tonne gross plated weight
  • Internal dimensions: 600mm x 450mm (L x W)
  • External dimensions: 663mm x 513mm x 30mm (L x W x D)
  • Application: driveway
  • Solid top cover
  • Material: galvanised steel cover
  • Polypropylene frame
£48.64 £40.53
Share on Social Media
  • Loading: 10 tonne gross plated weight
  • Internal dimensions: 600mm x 450mm (L x W)
  • External dimensions: 663mm x 513mm x 30mm (L x W x D)
  • Application: driveway
  • Solid top cover
  • Material: galvanised steel cover
  • Polypropylene frame

Galvanised single seal manhole cover and frame, suitable for domestic driveways and areas with light vehicle traffic. Suitable for both internal and external domestic applications.

Technical:

  • Weight: 9kg
  • Load rating classification: 10 tonne GPW
  • Load test data: 25kN held for 30 seconds
  • Standard: Mild Steel to BS EN 1449:1991/EN 10025:2004
  • Galvanising to BS EN 1461:2009
  • Polypropylene Grade AP9 (frame only)
