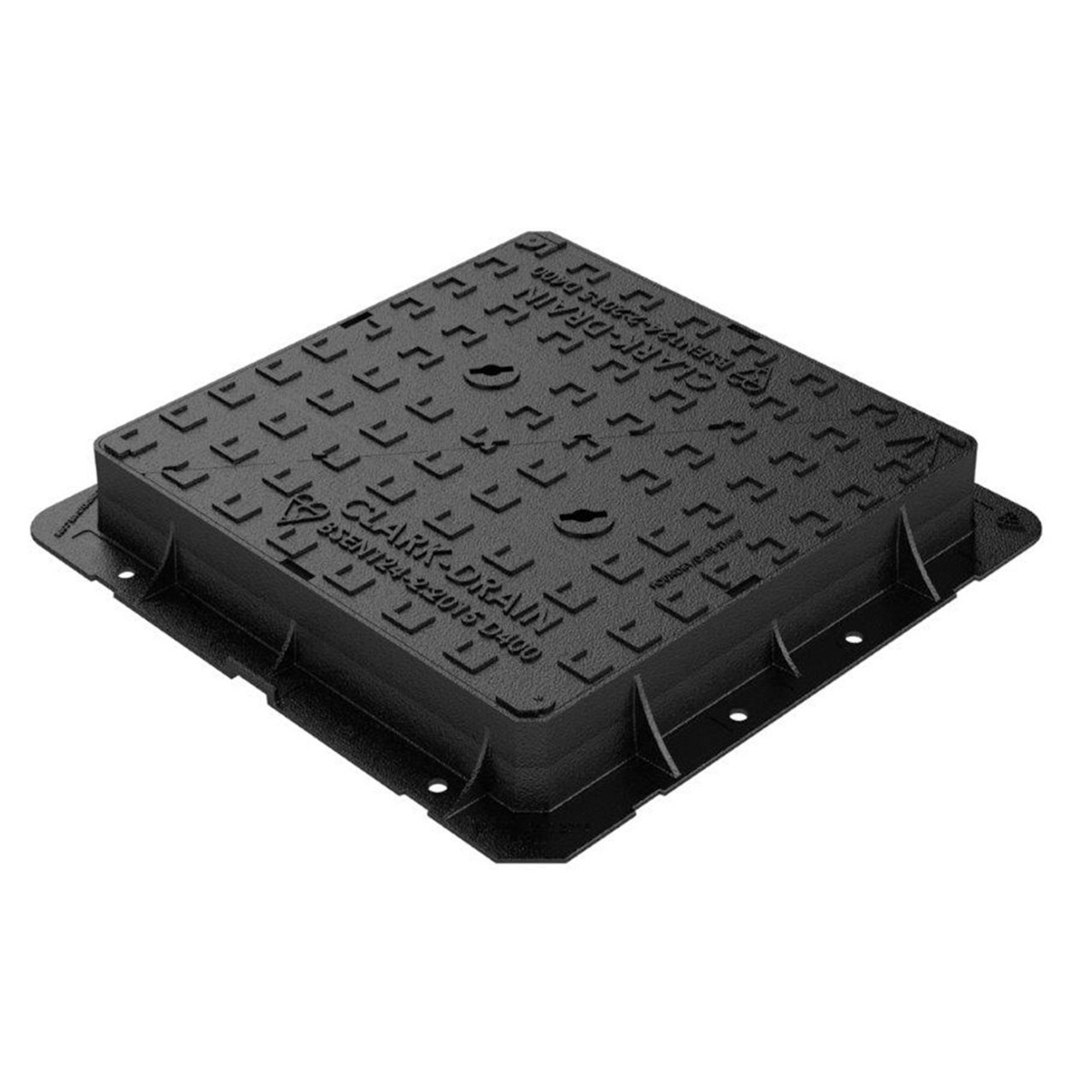

Clark-Drain Double Triangular Manhole Cover and Frame 600mm x 600mm - CD 701 KMD
In stock
REF
BMAN119
Spend £100 for free delivery from your local branch - learn more
This is a Local Delivery Only Product More info
- Loading: D400
- Internal dimensions: 600mm x 600mm (L x W)
- External dimensions: 728mm x 728mm x 100mm (L x W x D)
- Clear opening: 600mm x 600mm
- Applications: estate roads, delivery areas, car parks
- Double triangular cover
- Material: ductile iron
- BSI Kitemark Certified to BS EN124-2:2015
- Non-rock 3 point suspension covers
- Integral lifting key holes (to suit CD 552 or CD 552L Lifting keys not included
£105.79
£88.16
- Loading: D400
- Internal dimensions: 600mm x 600mm (L x W)
- External dimensions: 728mm x 728mm x 100mm (L x W x D)
- Clear opening: 600mm x 600mm
- Applications: estate roads, delivery areas, car parks
- Double triangular cover
- Material: ductile iron
- BSI Kitemark Certified to BS EN124-2:2015
- Non-rock 3 point suspension covers
- Integral lifting key holes (to suit CD 552 or CD 552L Lifting keys not included
Double triangular manhole cover and frame designed for use in residential, commercial and light industrial applications. The manhole is not suitable for carriageway use.
Technical:
- Weight: 60kg
- Frame pressure bearing area (N/mm2): 3.6
- Polished Skid-Resistance Value: 45+
- Load rating classification: D400 - 40 tonnes
- Standard: BS EN124-2:2015
- Spheroid Graphite Iron Grade EN-GJS-500-7 to BS EN 1563:2011
- Temporary Bitumen-based paint coating to BS 3416:1991
