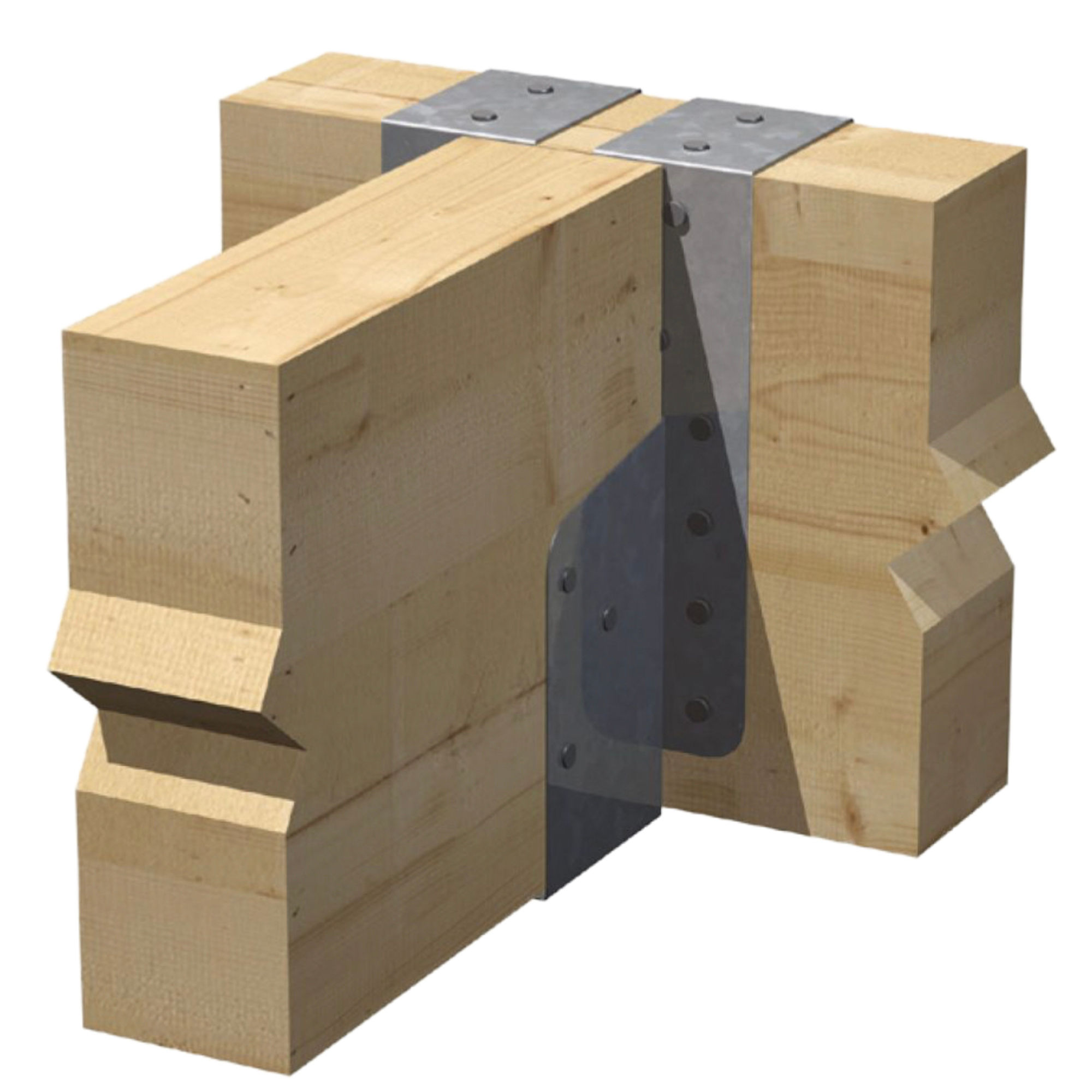

Speedy Joist Hanger 47mm (Max Depth 225mm)
In stock
REF
BBRS536
- European Standard/ETA ETAG015 (ETA13/0803)
- Test Standard ETAG015/TR016
- Notified Body Exova BM Trada (NB 1224)
- Material Galvanized Mild Steel DX51D+Z275 to EN10346:2015
- Coating/Finish/Colour 275g/m² Zinc Coating
- Length 1/Projection 50mm Shoe
- Length 2/height 276mm
- Width/Wing Length 47mm Joist Width
- Plaster/Render/Joist depth Max joist height 225mm
- Material Gauge 0.9mm
- Individual Weight (kg) 0.183
- Declared Loadbearing Capacity 6.7kN (ULS)
- Fire Rating Euroclass A1
- Fixing Hole Dimensions 3.8mm
- Fixing Type 3.75 x 30mm Square Twisted Sherardized/Galvanised Nails
£2.02
£1.68
- European Standard/ETA ETAG015 (ETA13/0803)
- Test Standard ETAG015/TR016
- Notified Body Exova BM Trada (NB 1224)
- Material Galvanized Mild Steel DX51D+Z275 to EN10346:2015
- Coating/Finish/Colour 275g/m² Zinc Coating
- Length 1/Projection 50mm Shoe
- Length 2/height 276mm
- Width/Wing Length 47mm Joist Width
- Plaster/Render/Joist depth Max joist height 225mm
- Material Gauge 0.9mm
- Individual Weight (kg) 0.183
- Declared Loadbearing Capacity 6.7kN (ULS)
- Fire Rating Euroclass A1
- Fixing Hole Dimensions 3.8mm
- Fixing Type 3.75 x 30mm Square Twisted Sherardized/Galvanised Nails
Top Installation Tips:
- Fix using all nail holes to achieve the stated load
- Ensure the hanger is the correct size for the joist
- Cut joist square with a gap not exceeding 6mm from the rear of the hanger
- Fold over supporting timber and fix with holes provided
- Do not shorten straps
- Ensure the floor has suitable noggins/strutting before applying the load
Features:
- Adjustable fixing straps to suit multiple joist depths
- 275g/m2 Galvanized Coating
- Lightweight
- Covered by a European Technical Approval
