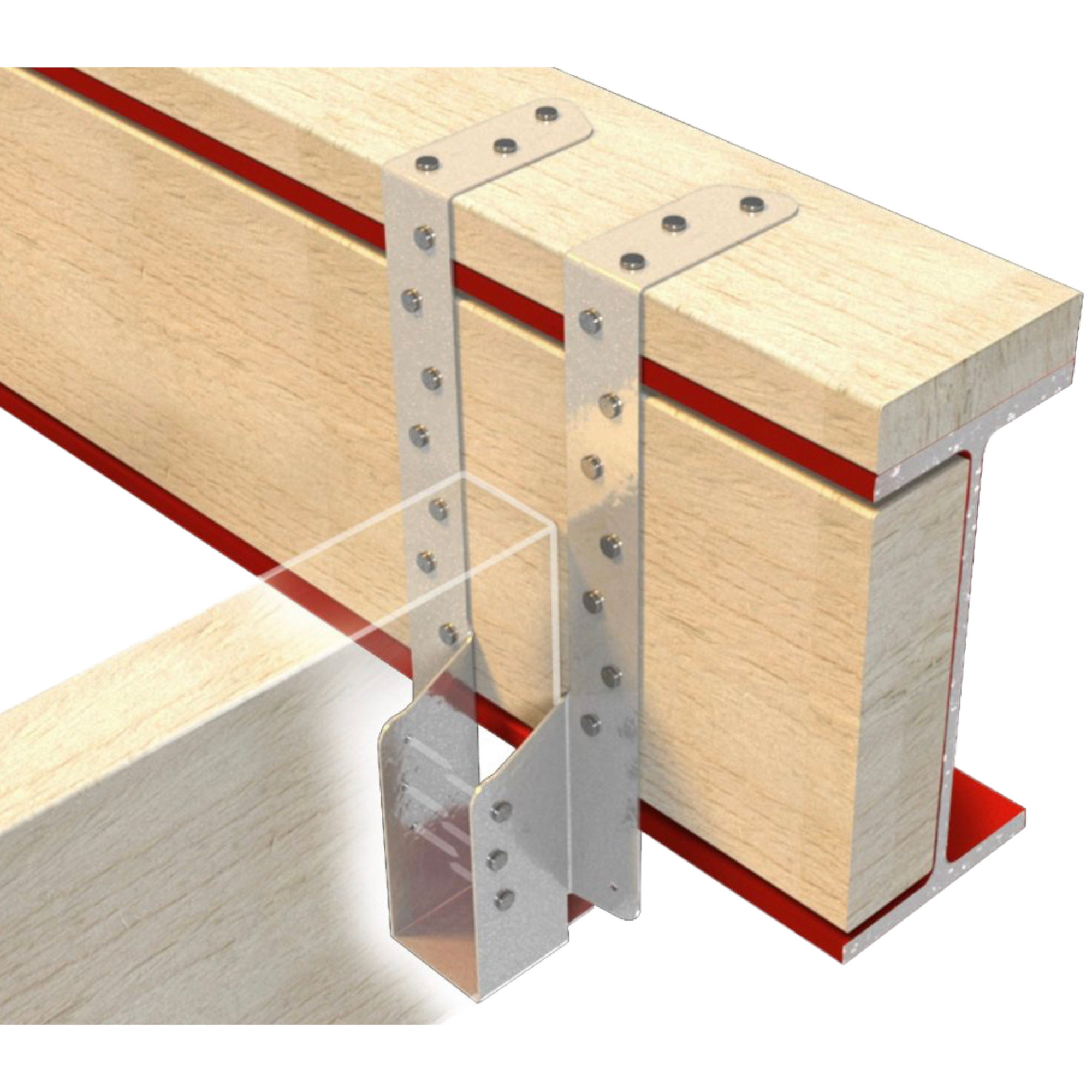

Long Leg Speedy Joist Hanger 47mm (Max Depth 225mm)
In stock
REF
BBRS537
- Wrap Over (adjustable) joist hanger
- European Standard/ETA: ETAG015 (ETA13/0803)
- Test Standard: ETAG015/TR016
- Notified Body: Exova BM Trada (NB 1224)
- Material: Galvanized Mild Steel DX51D+Z275 to EN10346:2015
- Coating/Finish/Colour: 275g/m² Zinc Coating
- Length 1/Projection: 50mm Shoe
- Length 2/height: 392mm
- Width/Wing Length: 47mm Joist Width
- Plaster/Render/Joist depth: Max joist height 225mm
- Material Gauge: 1.5mm
- Individual Weight (kg): 0.467
- Declared Loadbearing Capacity: 7.6kN (ULS) 6.7kN (Underslung)
- Fire Rating: Euroclass A1
- Fixing Hole Dimensions: 3.8mm
- Fixing Type: 3.75 x 30mm Square Twisted Sherardized/Galvanised Nails
£7.92
£6.60
- Wrap Over (adjustable) joist hanger
- European Standard/ETA: ETAG015 (ETA13/0803)
- Test Standard: ETAG015/TR016
- Notified Body: Exova BM Trada (NB 1224)
- Material: Galvanized Mild Steel DX51D+Z275 to EN10346:2015
- Coating/Finish/Colour: 275g/m² Zinc Coating
- Length 1/Projection: 50mm Shoe
- Length 2/height: 392mm
- Width/Wing Length: 47mm Joist Width
- Plaster/Render/Joist depth: Max joist height 225mm
- Material Gauge: 1.5mm
- Individual Weight (kg): 0.467
- Declared Loadbearing Capacity: 7.6kN (ULS) 6.7kN (Underslung)
- Fire Rating: Euroclass A1
- Fixing Hole Dimensions: 3.8mm
- Fixing Type: 3.75 x 30mm Square Twisted Sherardized/Galvanised Nails
Top Installation Tips:
- Fix using all nail holes to achieve stated loads
- Ensure the hanger is the correct size for the joist
- Cut joists square with a gap not exceeding 6mm from the rear of the hanger
- Fold over supporting timber and fix with holes provided
- Do not modify straps
- Ensure the floor has suitable noggins/strutting before applying the load
Features:
- Adjustable fixing straps to suit multiple joist depths
- Can be underslung by up to 100mm
- 275g/m2 Galvanized Coating
- Covered by a European Technical Approval
