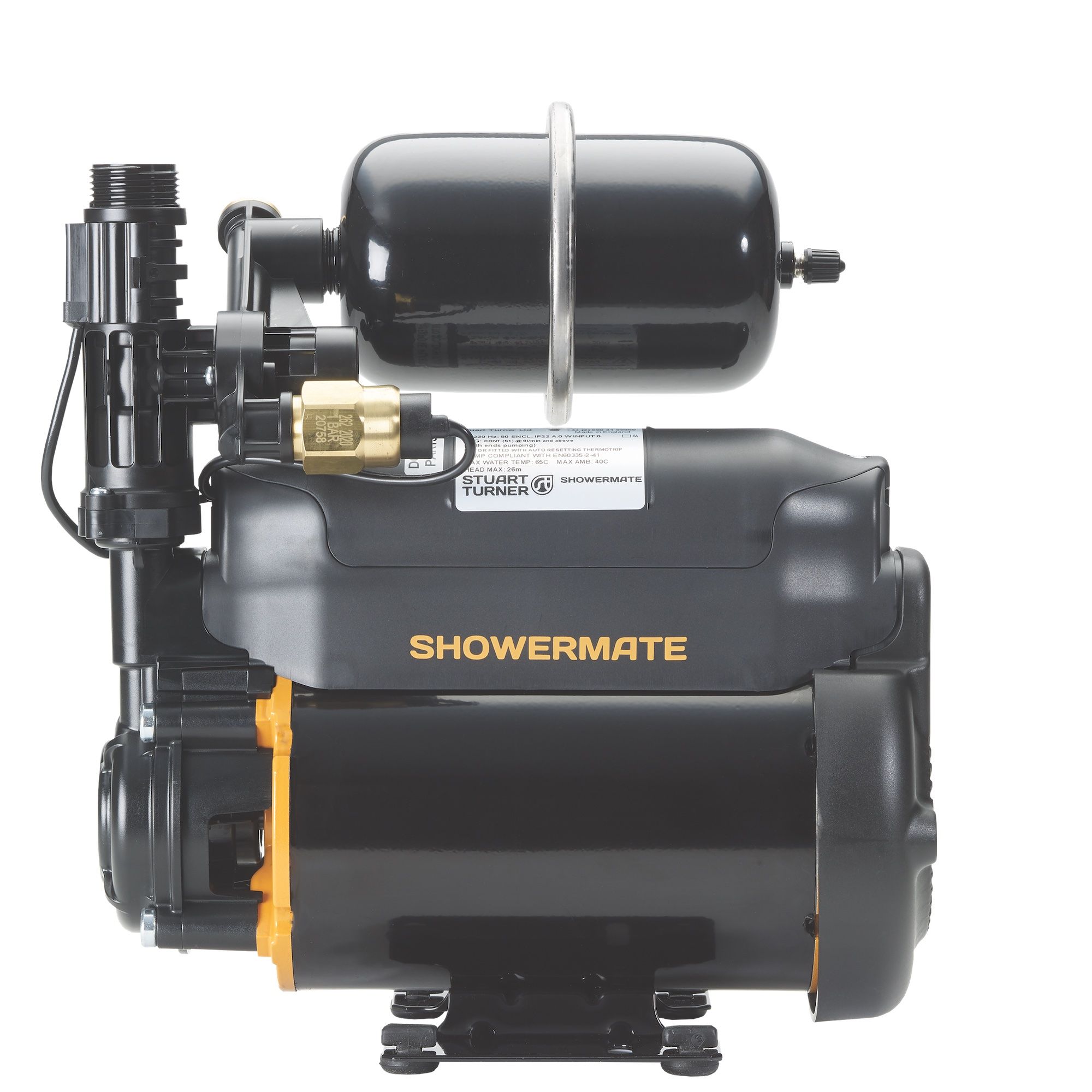

Stuart Turner Showermate Universal Single Head Shower Pump 2.6 Bar

A compact universal head pump suitable for use in open vented (gravity fed) systems. The shower pump can be installed in pairs when pumping hot and cold water supplies independently, or as a single pump.

Technical:

• Pump type: peripheral / regenerative
• Pump control: pressure and flow switch
• Run on timer: 3 seconds
• Flow switch sensitivity: 0.8 l/min
• Maximum head - closed valve (bar/metres): 2.6 bar / 26 metres
• Typical head @ 9 l/min (bar / metres): 1.5 bar / 15 metres
• Typical head @ 18 l/min (bar / metres): 0.5 bar / 5 metres
• Maximum flow (l/min): 22 l/min

Applications:

• Low pressure gravity systems - boosting hot or cold water supplies to a single shower or to up to four outlets within a bathroom
• Suitable for use where there is already more than 1 litre/min flow from the outlet(s) to be boosted
