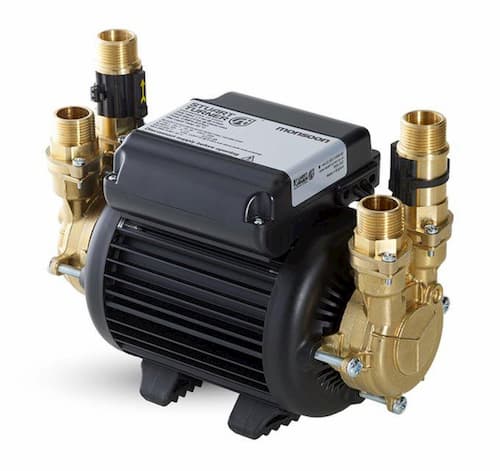

Stuart Turner Monsoon Standard Twin Shower Pump 1.5 Bar
In stock
REF
PESP009
- 1.5 bar pressure
- Suitable for positive head applications
- Supplied with flexible hoses with integral ISO valves
- Quiet operation and anti-vibration feet
- Continuously rated
- EPDM/PTFE/Al. Oxide seal
- 1.5m power cable pre-wired
- UK Specification: Supplied with 22mm push-in x 300mm anti-vibration flexible hoses with integral isolating valves
- ROI Specification: Supplied with 21mm push-in x 300mm anti-vibration flexible hoses with integral isolating valves
- Export Specification: Supplied with G 3/4 female x 300mm long hoses
- WRAS approved product
- Warranty: 5 yearsÂ
£411.34
£342.78
- 1.5 bar pressure
- Suitable for positive head applications
- Supplied with flexible hoses with integral ISO valves
- Quiet operation and anti-vibration feet
- Continuously rated
- EPDM/PTFE/Al. Oxide seal
- 1.5m power cable pre-wired
- UK Specification: Supplied with 22mm push-in x 300mm anti-vibration flexible hoses with integral isolating valves
- ROI Specification: Supplied with 21mm push-in x 300mm anti-vibration flexible hoses with integral isolating valves
- Export Specification: Supplied with G 3/4 female x 300mm long hoses
- WRAS approved product
- Warranty: 5 yearsÂ
The Monsoon standard twin shower pump has been designed for vented systems to pump hot and cold water supplies. Suitable for positive head applications.
Technical:
- Pump type: peripheral
- Pump control: flow switch
- Pump body: brass
- Impeller: brass
- Maximum head - closed valve (bar / metres): 1.5 bar / 15 metres
- Performance @ 9 l/min (bar / metres): 1.2 bar
- Performance @ 18 l/min (bar / metres): 1.1 bar
- Maximum flow (l/min): 49 l/min
- Maximum working pressure (kPa / bar): 600 kPa / 6 bar
- Maximum ambient air temperature (°C): 40 °C
- Min / Max water temperature (°C): 4 °C / 65 °C
- Flow switch sensitivity - approx (l/min): 0.6 l/min
- Typical Noise dB(A): 48 dB(A)
- Power supply (VAC/PH/HZ): 230 Va.c. / 1 / 50Hz
- Power consumption - P1: 345 Watts
- Current - full load (Amps): 1.5 Amps
- Fuse rating (Amps): 5 Amps
