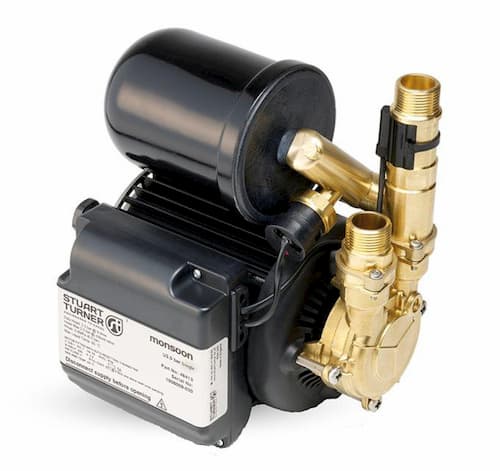

Stuart Turner Monsoon Universal Single Shower Pump 3.0 Bar
In stock
REF
PESP007
- 3.0 bar pressure
- Suitable for positive or negative head applications
- Supplied with flexible hoses with integral ISO valves
- Quiet operation and anti-vibration feet
- Continuously rated
- EPDM/PTFE/Al. Oxide seal
- 1.5m power cable pre-wired
- UK Specification: Supplied with 22mm push-in x 300mm anti-vibration flexible hoses with integral isolating valves
- ROI Specification: Supplied with 21mm push-in x 300mm anti-vibration flexible hoses with integral isolating valves
- Export Specification: Supplied with G 3/4 female x 300mm long hoses
- WRAS approved product
- Warranty: 5 yearsÂ
£415.51
£346.26
- 3.0 bar pressure
- Suitable for positive or negative head applications
- Supplied with flexible hoses with integral ISO valves
- Quiet operation and anti-vibration feet
- Continuously rated
- EPDM/PTFE/Al. Oxide seal
- 1.5m power cable pre-wired
- UK Specification: Supplied with 22mm push-in x 300mm anti-vibration flexible hoses with integral isolating valves
- ROI Specification: Supplied with 21mm push-in x 300mm anti-vibration flexible hoses with integral isolating valves
- Export Specification: Supplied with G 3/4 female x 300mm long hoses
- WRAS approved product
- Warranty: 5 yearsÂ
Monsoon Universal Single Shower Pump has been specifically designed to boost water supply. Suitable for both positive and negative head applications. The pump can be used in pairs to boost vented systems to hot and cold water supplies independently, or a single pump to boost a water supply.
Technical:
- Pump type: peripheral
- Pump control: pressure and flow switch
- Pump body: brass
- Impeller: brass
- Run on timer: 3 seconds
- Maximum head - closed valve (bar / metres): 3.2 bar / 32 metres
- Performance @ 9 l/min (bar / metres): 2.5 bar
- Performance @ 18 l/min (bar / metres): 0.9 bar
- Maximum flow (l/min): 22 l/min
- Maximum working pressure (kPa / bar): 600 kPa / 6 bar
- Maximum ambient air temperature (°C): 40 °C
- Min / Max water temperature (°C): 4 °C / 65 °C
- Flow switch sensitivity - approx (l/min): 0.6 l/min
- Typical Noise dB(A): 48 dB(A)
- Power supply (VAC/PH/HZ): 230 Va.c. / 1 / 50Hz
- Power consumption - P1: 390 Watts
- Current - full load (Amps): 1.78 Amps
- Fuse rating (Amps): 5 Amps
