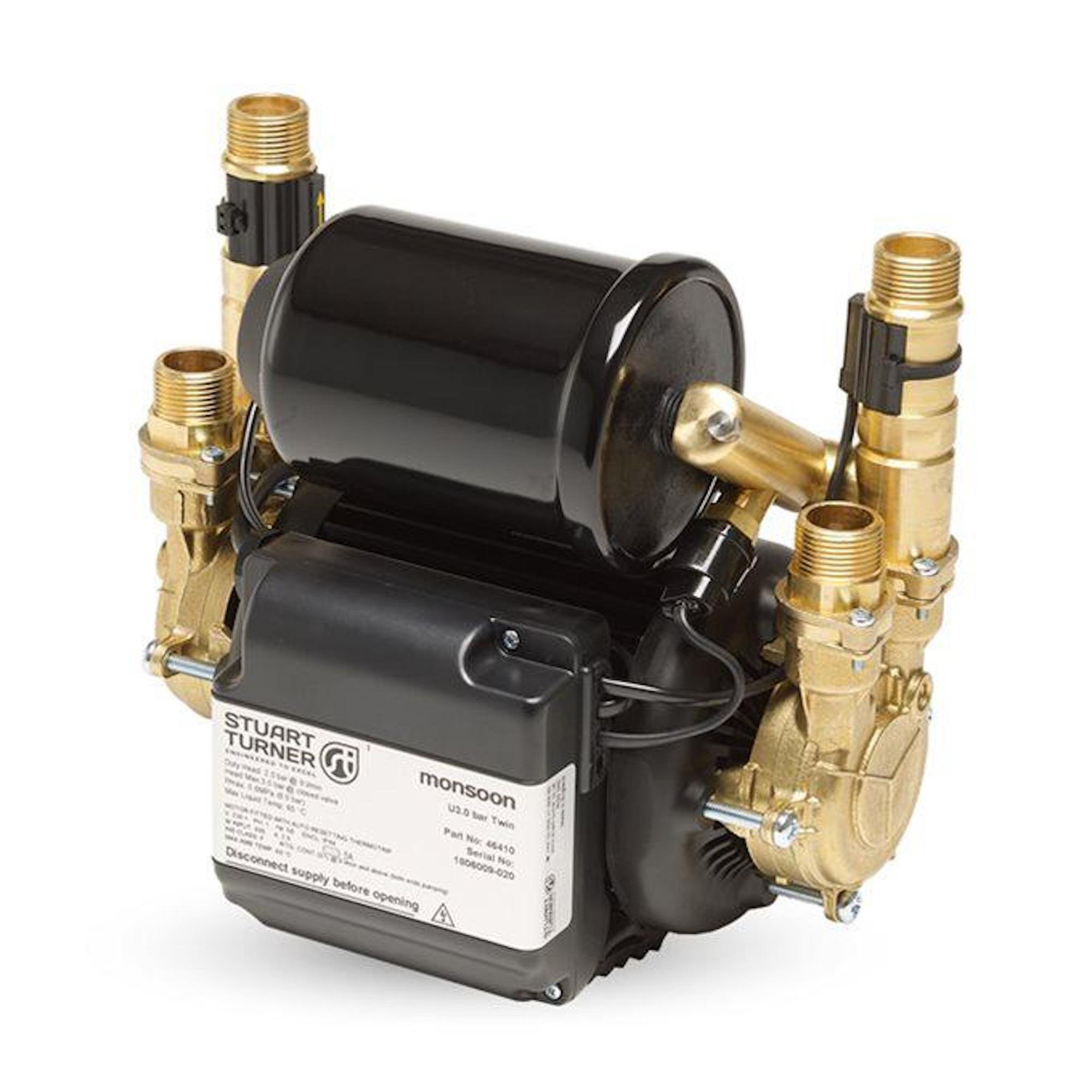

Stuart Turner Monsoon Universal Twin Shower Pump 1.5 Bar

In stock
REF
PESP001
  • 1.5 bar pressure
  • Suitable for positive or negative head applications
  • Supplied with flexible hoses with integral ISO valves
  • Quiet operation and anti-vibration feet
  • EPDM/PTFE/Al. Oxide seal
  • 1.5m power cable - pre-wired
  • UK Specification: supplied with 22mm push-in x 300mm anti-vibration flexible hoses with integral isolating valves
  • ROI Specification: supplied with 21mm push-in x 300mm anti-vibration flexible hoses with integral isolating valves
  • Export Specification: supplied with G ¾ female x 300mm long hoses
  • WRAS approved
  • Warranty: 5 years
£567.94 £473.28
Share on Social Media
  • 1.5 bar pressure
  • Suitable for positive or negative head applications
  • Supplied with flexible hoses with integral ISO valves
  • Quiet operation and anti-vibration feet
  • EPDM/PTFE/Al. Oxide seal
  • 1.5m power cable - pre-wired
  • UK Specification: supplied with 22mm push-in x 300mm anti-vibration flexible hoses with integral isolating valves
  • ROI Specification: supplied with 21mm push-in x 300mm anti-vibration flexible hoses with integral isolating valves
  • Export Specification: supplied with G ¾ female x 300mm long hoses
  • WRAS approved
  • Warranty: 5 years

Suitable for use with vented systems. The Monsoon Universal pumps both hot and cold water supplies and boosts both equally. Compatible with positive and negative head applications.

Technical:

  • Pump type: peripheral
  • Pump control: pressure and flow switch
  • Pump body: brass
  • Impeller: brass
  • Run on timer: 3 seconds
  • Maximum head - closed valve (bar / metres): 1.5 bar / 15 metres
  • Performance @ 9 l/min (bar / metres): 1.3 bar
  • Performance @ 18 l/min (bar / metres): 0.8 bar
  • Maximum flow (l/min): 32 l/min
  • Maximum working pressure (kPa / bar): 600 kPa / 6 bar
  • Maximum ambient air temperature (°C): 40 °C
  • Min / Max water temperature (°C): 4 °C / 65 °C
  • Flow switch sensitivity - approx (l/min): 0.6 l/min
  • Typical Noise dB(A): 48 dB(A)
  • Power supply (VAC/PH/HZ): 230 Va.c. / 1 / 50Hz
  • Power consumption - P1: 355 Watts
  • Current - full load (Amps): 1.5 Amps
  • Fuse rating (Amps): 5 Amps
