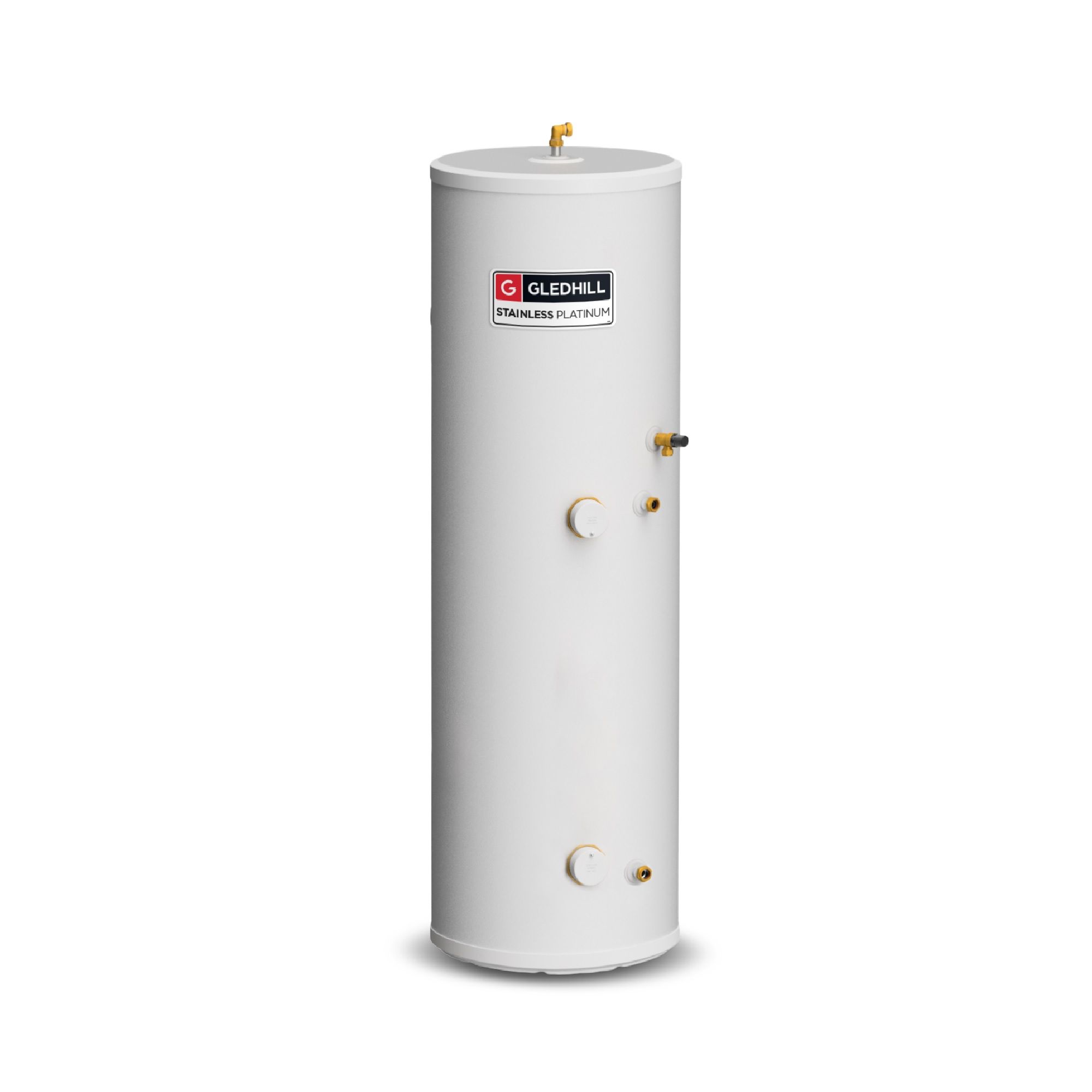

Gledhill Platinum Unvented Internal Expansion Direct Hot Water Cylinder
Out of stock
REF
HCYL454P
Sorry this product is out of stock - please contact us for alternatives and lead times.
Spend £100 for free delivery from your local branch - learn more
This is a Local Delivery Only Product More info
- 90 degree elbow for quicker installation
- High specification duplex stainless steel
- Floating baffle
- Lift up temperature and pressure relief valve for easier drain down
- 3kW incoloy immersion heaters for use as a primary or backup heat source
- Corrugated StainlessLite Supercoil for faster recovery times
- Aligned tapping positions for ease of installation
- 90 degree elbow for quicker installation
- High specification duplex stainless steel
- Floating baffle
- Lift up temperature and pressure relief valve for easier drain down
- 3kW incoloy immersion heaters for use as a primary or backup heat source
- Corrugated StainlessLite Supercoil for faster recovery times
- Aligned tapping positions for ease of installation
Unvented Internal Expansion Hot Water Cylinder – Making Installers’ Lives Easier
Manufactured from high specification duplex stainless steel, Gledhill’s Platinum range is designed to eliminate the requirement for an external expansion vessel, providing the perfect solution to restricted space and enabling quicker installation.
Gledhill’s Platinum cylinders are extremely well insulated using high density HCFC free Envirofoam insulation to achieve astonishingly low levels of heat loss, maximising energy efficiency for homeowners.
The range is available in direct and indirect patterns, and in sizes from 120 litres up to 300 litres indirect and 120 litres up to 210 litres direct. In addition, all Platinum unvented cylinders come with a 25 year warranty with on-site support, promising peace of mind.
The direct model comes complete with two immersions, one for on-peak use and one for off-peak use. This allows the store of water to be heated utilising off-peak electricity, making the unit extremely efficient.
Specifications
| Model | Capacity | Height (mm) | Diameter (mm) | Weight (Empty) | Weight (Full) | Energy Efficiency Class | Heat Up Time - Coil | Heat Loss (Watts) | No of Immersions | Secondary Return |
|---|---|---|---|---|---|---|---|---|---|---|
| PLTDR120 | 120 Ltr | 931 mm | 550 mm | 26 kg | 135 kg | Class B | 103 minutes | 39 W | 2 | N/A |
| PLTDR150 | 150 Ltr | 1118 mm | 550 mm | 29 kg | 168 kg | Class B | 154 minutes | 51 W | 2 | N/A |
| PLTDR180 | 180 Ltr | 1306 mm | 550 mm | 34 kg | 202 kg | Class B | 174 minutes | 55 W | 2 | N/A |
| PLTDR210 | 210 Ltr | 1494 mm | 550 mm | 38 kg | 234 kg | Class C | 203 minutes | 63 W | 2 | Yes |
